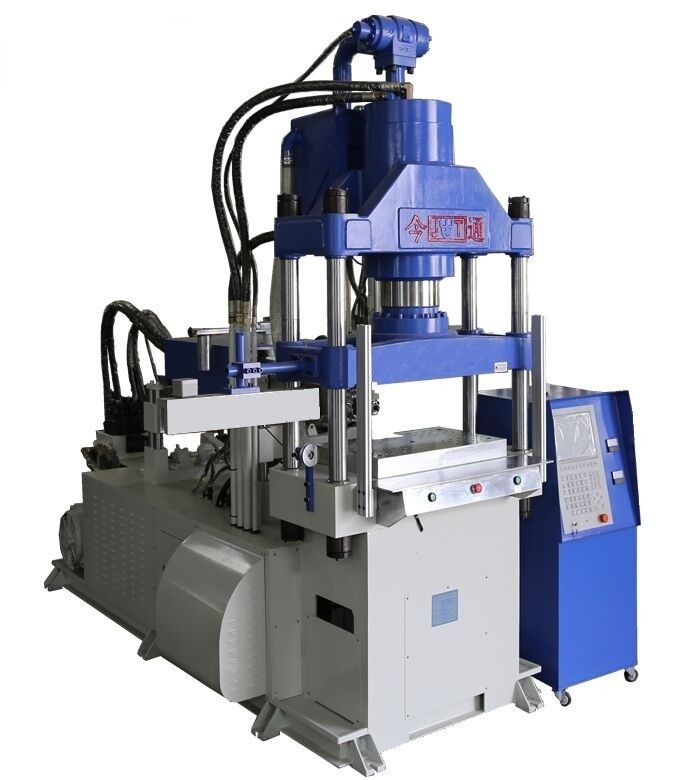

Automatic 120T Vertical Clamping Horizontal Injection Machine For Diamond Cutting Wire
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTKR-1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | $31500.00 - $38,000.00/pieces |
| Packaging Details: | plywood case |
| Delivery Time: | 35 days |
| Supply Ability: | 60 Piece/Pieces per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Ejector Stroke(mm): | 75 Mm | Ejector Force(kN): | 33 KN |
| Theoretical Shot Volume(cm³): | 303 Cm³ | Injection Rate (g/s): | 127 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 400 G |
| Screw Diameter (mm): | 50 Mm | Distance Between Tie Bars: | 760mm |
| Weight (KG): | 6500 | Type: | Other |
| Open Stroke(mm): | 420 Mm | Power (kW): | 32.6 KW |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Engine |
| Opening Stroke: | 350MM | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support |
| Screw Diameter: | 52mm 62mm | Screw Stroke: | 240mm |
| Product Name: | Automatic Bakelite BMC Injection Molding Machine JTKR-1600D BMC | Opening Force: | 29T |
| Max Daylight: | 600mm | Min Old Height: | 250mm |
| Ejector Force: | 2.9T | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | United States, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Australia, Colombia, Bangladesh, South Africa, Ukraine | Marketing Type: | Ordinary Product |
| Port: | SHENZHEN | ||
| Highlight: | Automatic Vertical Clamping Horizontal Injection Machine,120T Vertical Clamping Horizontal Injection Machine |
||
Product Description
120T Accuracy Injection Molding Machine For Diamond Cutting Wire
Automatic 120T accuracy Injection Molding Machine for diamond cutting wire
Clamping Force: 120T
Injection Weight: 200g
Vertical clamping, horizontal injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Optional energy-saving motor
| UNIT | JTKR-1200 | ||
| INJECTION SYSTEM | screw diameter | mm | 35 |
| injection pressure | kg/cm² | 3044 | |
| theoretical shot volume | cm³ | 183 | |
| max shot weight | g | 163 | |
| shot rate | oz | 112 | |
| screw stroke | mm | 180 | |
| screw speed | rpm | 25-320 | |
| nozzle contact force | Tons | 1.6 | |
| nozzle stroke | mm | 245 | |
| number of temperature control | 5 | ||
| CLAMPING SYSTEM | clamping force | Tons | 123 |
| opening force | Tons | 23 | |
| platen size | mm | 760*480 | |
| distance between tie bar | mm | 1080*350 | |
| min mold height | mm | 125 | |
| opening stroke | mm | 250 | |
| max open daylight | mm | 375 | |
| up ejector out force | Tons | 8.7 | |
| up ejector in force | Tons | 7.9 | |
| low ejector out force | Tons | 2.8 | |
| low ejector in force | Tons | 2.1 | |
| up ejector stroke | mm | 69 | |
| low ejector stroke | mm | 99 | |
| HYDRAULIC SYSTEM | pump output | cc | 116 |
| oil reservoir capacity | L | 450 | |
| motor power | kw | 14 | |
| motor speed | r/min | 960 | |
| heating power | kw | 10 | |
| total power | kw | 24 | |
| OTHER | machine dimension | m | 3.5*1.6*3 |
| weight | T | 6.5 |
Main Features
1) vertical clamping, horizontal injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
