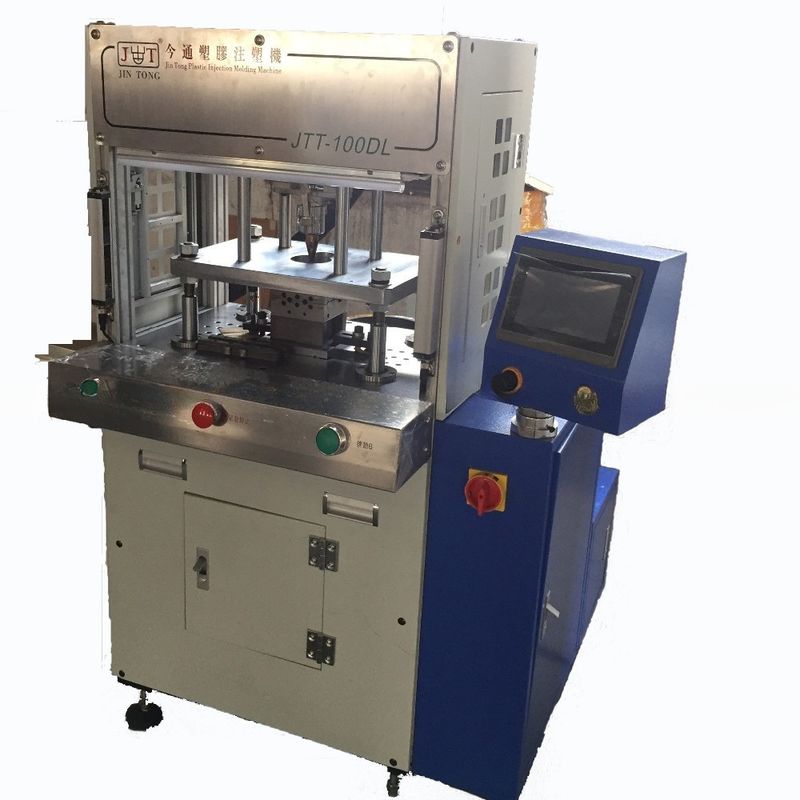

JTT-100DL Low Pressure Plastic Injection Molding Machine for PCB board
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTT-100DL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $5,200.00 - $9,000.00/pieces |
| Packaging Details: | plywood crate for low pressure plastic injection molding machine hot melt adhesive JTT-100DL |
| Supply Ability: | 600 Piece/Pieces per Month low pressure plastic injection molding machine hot melt adhesive |
|
Detail Information |
|||
| Plastic Processed: | Hot Melt Adhesive | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 35 Mm |
| Ejector Force(kN): | 5 KN | Theoretical Shot Volume(cm³): | 85 Cm³ |
| Injection Rate (g/s): | 25 G/s | Machine Type: | Electric |
| Injection Weight (g): | 72 G | Screw Diameter (mm): | 20 Mm |
| Distance Between Tie Bars: | 200mm | Weight (KG): | 500 |
| Type: | Cylinder Injection | Open Stroke(mm): | 300 Mm |
| Power (kW): | 3.4 KW | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Pressure Vessel, Engine | Opening Stroke: | 150MM |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support | Cylinder Diameter: | 8*1600 |
| Injection Pressure: | 1.5-4 Kg/cm2 | Product Name: | Low Pressure Plastic Injection Molding Machine Hot Melt Adhesive |
| Opening Force: | 0.4T | Platen Size: | 220*330mm |
| Max Open Daylight: | 200mm | Min Old Height: | 20mm |
| Ejector Force: | 0.1T | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | United States, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Argentina, Colombia, Algeria, Sri Lanka, Bangladesh, South Africa, Ukraine, Uzbekistan | Marketing Type: | Ordinary Product |
| Port: | SHENZHEN | ||
| Highlight: | Low Pressure Plastic Injection Molding Machine,JTT-100DL Plastic Injection Molding Machine |
||
Product Description
JTT-100DL Low Pressure Plastic Injection Molding Machine for PCB board
low pressure plastic injection molding machine hot melt adhesive JTT-100DL
Clamping Force: 1-5T
Vertical injection system, vertical clamping system.

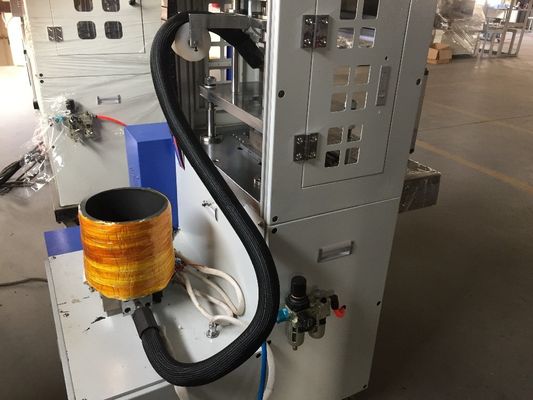

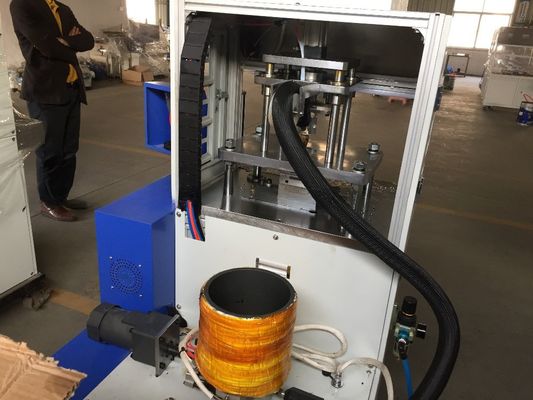

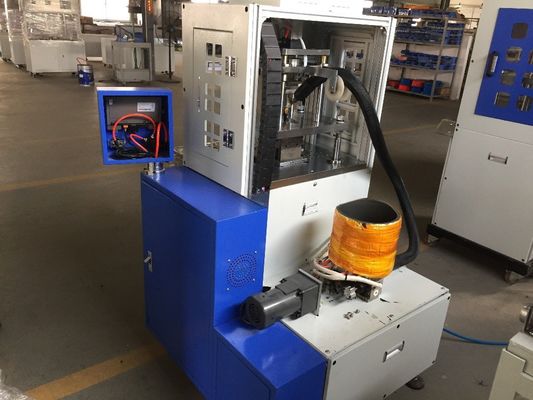

Integrated melting tank with machine
Hot melt adhensive begins from gear pump, pass valves to nozzle
Nozzle connected to melting tank, injection unit back and forward by air.
Melt tank made from aluminum alloy, precision machining then coated with Teflon, heating evenly and rapidly and clean easily.
Equipped with Eject system driven by air cylinder
Two PID thermal temperature control zones (Melting tank and nozzle)
Two tie bar design for molding small parts, operation easily.
220V single phase voltage, Energy saving, low pollution and no oil leakage risk
| Model | JTT-100DL | ||
| injection system | cylinder Diameter/length | mm | Φ8*1600 |
| Injection Pressure | kg/cm2 | 1.5-4 | |
| Max shot weight | g | 100 | |
| Nozzle Stroke | mm | 50 | |
| Number of Temperature Control | - | 1+2 | |
| Hopper Capacity | L | 6 | |
| clamping system | Clamping Force | tons | 1 |
| Opening Force | tons | 0.4 | |
| Platen Size | mm | 220*330 | |
| Distance Between Tie Bar | mm | 390 | |
| Min Mold Height | mm | 20 | |
| Opening Stroke | mm | 150 | |
| Max Open Daylight | mm | 200 | |
| Ejector Force | tons | 0.1 | |
| Ejector Stroke | mm | 10 | |
| air pressure electric system | Into the main pressure | kgf/cm2 | 5-7 |
| Voltage | V | 220 | |
| Motor power | kw | 0.2 | |
| Heating Power | kw | 3.5 | |
| Total power | KW | 3.7 | |
| other | Machine Weight | tons | 0.5 |
| Machine Dimension | m | 1.06*1.05*1.73 | |
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
