56g Low Pressure Hotmelt Adhesive Injection Molding Machine With Double Station
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTT-200 |
Payment & Shipping Terms:
| Price: | $3,200.00 - $5,000.00/pieces |
|---|---|
| Packaging Details: | plywood crate packing for Low pressure hotmelt adhesive horizontal injection moulding machine with double station |
| Supply Ability: | 60 Piece/Pieces per Month Low pressure hot glue adhensive horizontal injection moulding ma |
|
Detail Information |
|||
| Plastic Processed: | PP, PVC, PE | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 35 Mm |
| Ejector Force(kN): | 5 KN | Theoretical Shot Volume(cm³): | 65 Cm³ |
| Injection Rate (g/s): | 38 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 56 G | Screw Diameter (mm): | 28 Mm |
| Distance Between Tie Bars: | 240mm | Weight (KG): | 700 |
| Type: | Screw Injection | Open Stroke(mm): | 300 Mm |
| Power (kW): | 6.7 KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Screw | Opening Stroke: | 200MM |
| Cylinder Diameter: | 8*1600 | Injection Pressure: | 1.5-4 Kg/cm2 |
| Product Name: | Low Pressure Horizontal Injection Moulding Machine Double Station | Opening Force: | 0.4T |
| Platen Size: | 240*360mm | Max Open Daylight: | 240mm |
| Min Old Height: | 20mm | Ejector Force: | 0.1T |
| Automatic: | No | After-sales Service Provided: | Free Spare Parts, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | United States, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Argentina, Colombia, Bangladesh, South Africa, Kazakhstan, Ukraine |
| Marketing Type: | Ordinary Product | Port: | SHENZHEN |
| Highlight: | Low Pressure Adhesive Injection Molding Machine,Hotmelt Adhesive Injection Molding Machine,56g Low Pressure Injection Moulding Machine |
||
Product Description

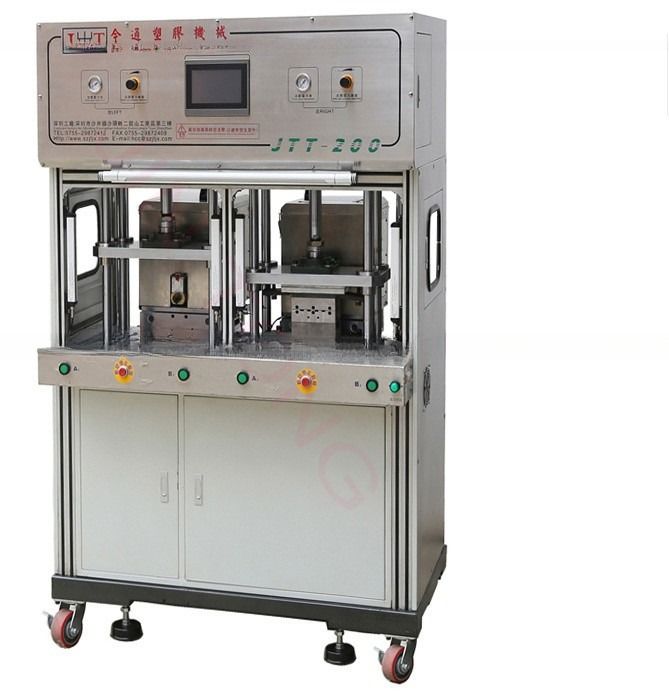

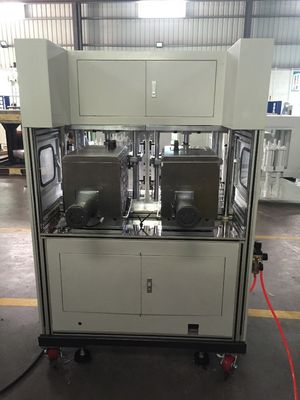

56g Low Pressure Hotmelt Adhesive Injection Moulding Machine With Double Station
Low pressure hotmelt adhesive horizontal injection moulding machine with double station JTT-200
Clamping Force: 1-10T
Vertical injection system, vertical clamping system.
Nozzle connected to gear pump directly
Nozzle connected to melting tank, injection unit back and forward by air.
Melt tank made from aluminum alloy, precision machining then coated with Teflon, heating evenly and rapidly and clean easily.
Equipped with Eject system driven by air cylinder
Two PID thermal temperature control zones (Melting tank and nozzle)
Two tie bar design for molding small parts, operation easily.
220V single phase voltage, Energy saving, low pollution and no oil leakage risk
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
