Double Slide Table JTT-100-DM Low Pressure Injection Molding Machine With Hotmelt
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-100-DM |
Payment & Shipping Terms:
| Price: | $11,000.00/pieces 1-2 pieces |
|---|---|
| Packaging Details: | plywood for hotmelt low pressure injection molding machine with double slide table JTT-100-DM |
| Supply Ability: | 600 Piece/Pieces per Month hotmelt injection molding machine with double slide table JTT-1 |
|
Detail Information |
|||
| Plastic Processed: | Hot Glue | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 50 |
| Mold Height(mm): | 30 - 200 Mm | Ejector Number: | 2 |
| Ejector Stroke(mm): | 10 Mm | Ejector Force(kN): | 1 KN |
| Theoretical Shot Volume(cm³): | 100 Cm³ | Injection Rate (g/s): | 80 G/s |
| Machine Type: | Electric | Injection Weight (g): | 90 G |
| Screw Speed (rpm): | 0 - 100 Rpm | Screw Diameter (mm): | 8 Mm |
| Screw L/D Ratio: | 200 | Distance Between Tie Bars: | 200mm |
| Weight (KG): | 600 Kg | Type: | Cylinder Injection |
| Open Stroke(mm): | 300 Mm | Power (kW): | 3.4 KW |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Pressure Vessel, Engine |
| Cylinder Diameter: | 8*1600 | Injection Pressure: | 1.5-4 Kg/cm2 |
| Product Name: | Hotmelt Injection Molding Machine With Double Slide Table JTT-100-DM | Opening Force: | 0.4T |
| Platen Size: | 220*330mm | After-sales Service Provided: | Free Spare Parts |
| Port: | SHENZHEN | ||
| Highlight: | Slide Table Low Pressure Injection Molding Machine,JTT-100-DM Low Pressure Injection Molding Machine |
||
Product Description

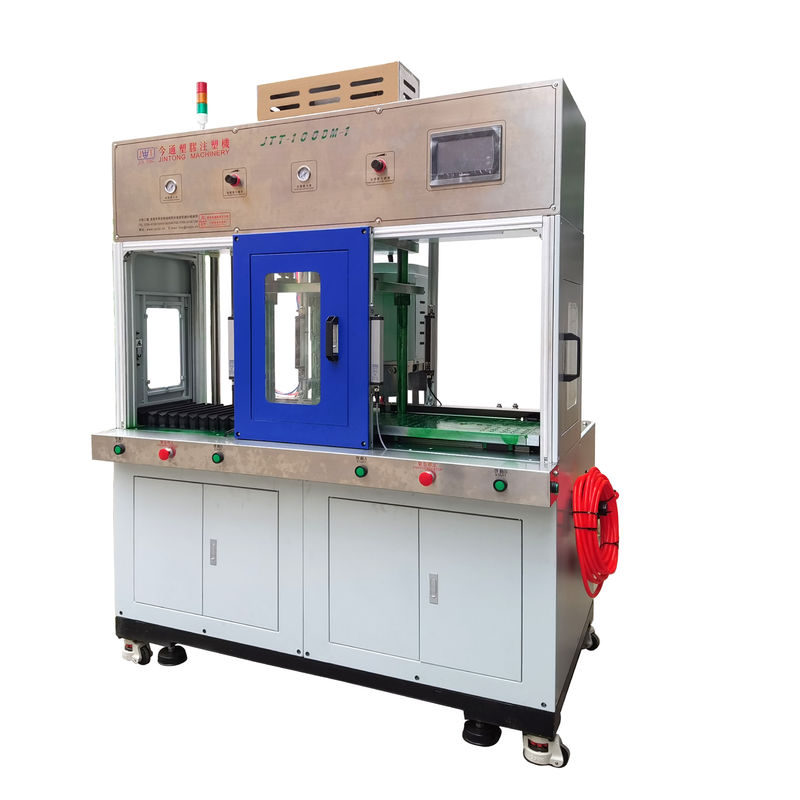

Double Slide Table JTT-100-DM Low Pressure Injection Molding Machine With Hotmelt
Hotmelt injection molding machine with double slide table JTT-100-DM
Clamping Force: 1-10T
horizontal injection system, vertical clamping system.
Nozzle connected to gear pump directly
Nozzle connected to melting tank, injection unit back and forward by air.
Melt tank made from aluminum alloy, precision machining then coated with Teflon, heating evenly and rapidly and clean easily.
Equipped with Eject system driven by air cylinder
Two PID thermal temperature control zones (Melting tank and nozzle)
Two tie bar design for molding small parts, operation easily.
220V single phase voltage, Energy saving, low pollution and no oil leakage risk
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
