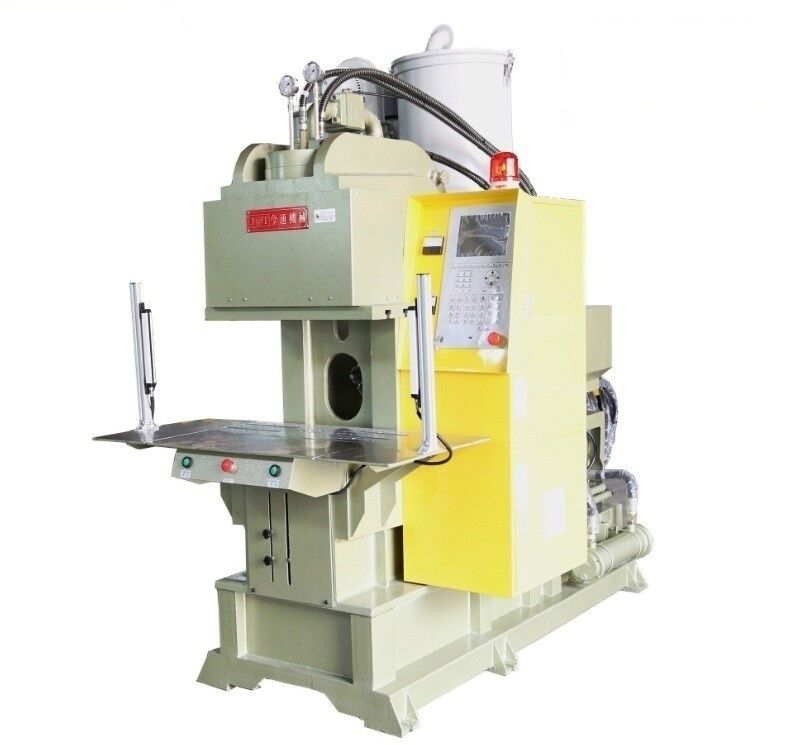

13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JC-550 |
Payment & Shipping Terms:
| Price: | $18,700.00/pieces 1-2 pieces |
|---|---|
| Packaging Details: | plywood for 2/3 pin plug vertical injection molding machine factory in Dongguan |
| Supply Ability: | 60 Piece/Pieces per Month 2/3 pin plug vertical injection molding machine factory in China |
|
Detail Information |
|||
| Plastic Processed: | PVC | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 230 |
| Mold Height(mm): | 110 - 400 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 75 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 194 Cm³ | Injection Rate (g/s): | 83 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 177 G |
| Screw Speed (rpm): | 1 - 140 Rpm | Screw Diameter (mm): | 42 Mm |
| Screw L/D Ratio: | 22 | Distance Between Tie Bars: | 375mm |
| Weight (KG): | 3200 Kg | Type: | Other |
| Open Stroke(mm): | 400 Mm | Power (kW): | 13kW |
| Warranty: | 1 Year | Key Selling Points: | Energy Saving |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, PLC, Pressure Vessel |
| Machine Name: | Plug 55T Injection Molding Machine | Max Injection Volume: | 275 |
| After-sales Service Provided: | Online Support | After Warranty Service: | Video Technical Support |
| Port: | SHENZHEN | ||
| Highlight: | 13kW Vertical Plastic Injection Molding Machine,Vertical Plastic Injection Molding Machine 55T |
||
Product Description
375mm Distance Between Tie Bars Plug Vertical Plastic Injection Molding Machine 55T

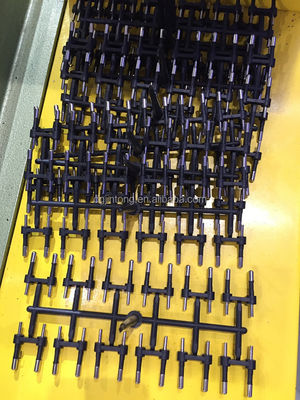

2/3 pin Plug vertical injection molding machine JC-550 in China Dongguan
Clamping Force: 55T
Injection Weight: 103-177g
Vertical clamping, horizontal injection
3 or 4 section temperature controller
Without column, easy to operation
Fixed low die and movable up die to avoid insert parts shift
Low pressure opening mold unit to protect mold safty
Alternative silde table or rotary table
Main Features
1) Vertical clamping, horizontal injection, no tie bar
2) Single sliding table, one top die, one bottom die
3) The lower die can slip outside, and inserted action can be safer, and work efficiency improves. And also the finished goods release outside.
4) Use energy-saving motor to save 71% electricity power
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
