85T PC Plastic Injection Moulding Machine Slide Table VERTICAL Style
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-850DM |
Payment & Shipping Terms:
| Price: | $22,000.00/pieces 1-1 pieces |
|---|---|
| Packaging Details: | plastic film packing for plastic injection moulding/molding machine price 85T |
| Supply Ability: | 600 Piece/Pieces per Month plastic injection moulding/molding machine price 85T |
|
Detail Information |
|||
| Plastic Processed: | PC, PA | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 160 |
| Mold Height(mm): | 120 - 360 Mm | Ejector Number: | 2 |
| Ejector Stroke(mm): | 75 Mm | Ejector Force(kN): | 33 KN |
| Theoretical Shot Volume(cm³): | 275 Cm³ | Injection Rate (g/s): | 167 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 250 G |
| Screw Speed (rpm): | 1 - 200 Rpm | Screw Diameter (mm): | 45 Mm |
| Screw L/D Ratio: | 22 | Distance Between Tie Bars: | 500mm |
| Weight (KG): | 3300 Kg | Type: | Other |
| Open Stroke(mm): | 500 Mm | Power (kW): | 14.7 KW |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Pressure Vessel |
| After-sales Service Provided: | Free Spare Parts | Machine Color: | Grey Blue |
| Port: | SHENZHEN | ||
| Highlight: | 85T PC Plastic Injection Moulding Machine,Plastic Injection Moulding Machine Slide Table |
||
Product Description
85T PC Plastic Injection Moulding Machine Slide Table For Customer Requirements
Plastic injection moulding/molding machine price JTT-850DM
Clamping Force: 85T
Injection Weight: 123-250g
Vertical clamping, vertical injection

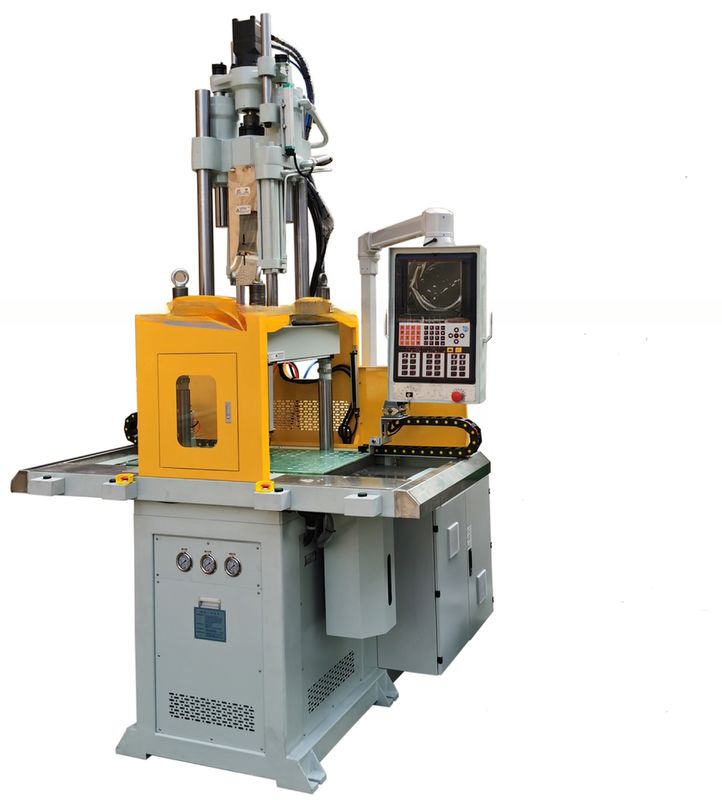

DM—integrated double slide table(one up die and two low die)
LDM-split double slide table(one up die and two low die)
Double slide table to offer operation convenience and increase capacity
Optional saving energy motor
Fixed low die and movable up die to avoid insert part shift; oil hydraulic unit under low die to ejector finshed products; ejector speed and stroke adjusted by actual demand
Combined with conveyor system used on production line
Main Features
Two lower molds can change the position with each other by right-angle. One mold for forming the parts, one mold for fetching the parts. With high safety and the work efficiency can be improved by 30% to 50%.
Suitable for all kinds of insert molding.
Nitrided steel screw and barrel, directly driven by high torque motor, with multi stages injection pressure, better plasticization.
Vertical compression clamping system, closing mold with high speed lower pressure as well as multi pressure control and prolong mold using life.
Electric protection device can not happen wrong action and maintain the operators safety.
Auto life injection base, it is easy for replacement of material and mold.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
