21.6kW Vertical LSR Injection Molding Machine 45mm Screw Diameter
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-850 LSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $30,500.00 - $38,000.00/pieces |
| Packaging Details: | plastic film packing for LSR liquid silicone nipple pacifier injection molding machine 85T |
| Supply Ability: | 600 Piece/Pieces per Month LSR liquidsilicone nipple pacifier injection molding machine 85T |
|
Detail Information |
|||
| Plastic Processed: | Liquid Silicone | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 200 |
| Mold Height(mm): | 160 - 420 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 75 Mm | Ejector Force(kN): | 33 KN |
| Theoretical Shot Volume(cm³): | 275 Cm³ | Injection Rate (g/s): | 135 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 220 G |
| Screw Speed (rpm): | 1 - 190 Rpm | Screw Diameter (mm): | 45 Mm |
| Screw L/D Ratio: | 24 | Distance Between Tie Bars: | 560mm |
| Weight (KG): | 3500 Kg | Type: | Other |
| Open Stroke(mm): | 500 Mm | Power (kW): | 21.6kW |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Pressure Vessel |
| Opening Stroke: | 280MM | Screw Diameter: | 35mm 40mm 45mm |
| Screw Stroke: | 190mm | Product Name: | LSR Liquid Silicone Pacifier Injection Molding Machine JTT-850LSR |
| Opening Force: | 10.5T | Rotary Table Diameter: | 1180mm |
| Max Daylight: | 500/560mm | Min Old Height: | 220/280mm |
| Ejector Force: | 2.3T | Clamping Force (kN): | 850 KN |
| Marketing Type: | Ordinary Product | Port: | SHENZHEN |
| Highlight: | 21.6kW LSR Injection Molding Machine,Vertical LSR Injection Molding Machine,Vertical LSR Injection Machine |
||
Product Description

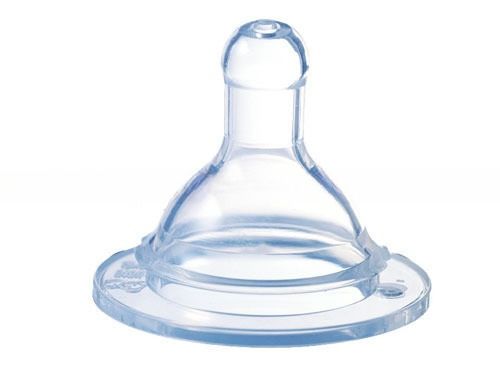

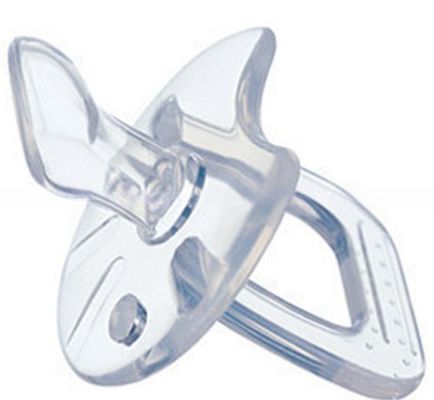

45mm Screw Diameter LSR Liquid Silicone Nipple Pacifier Injection Molding Machine 85T

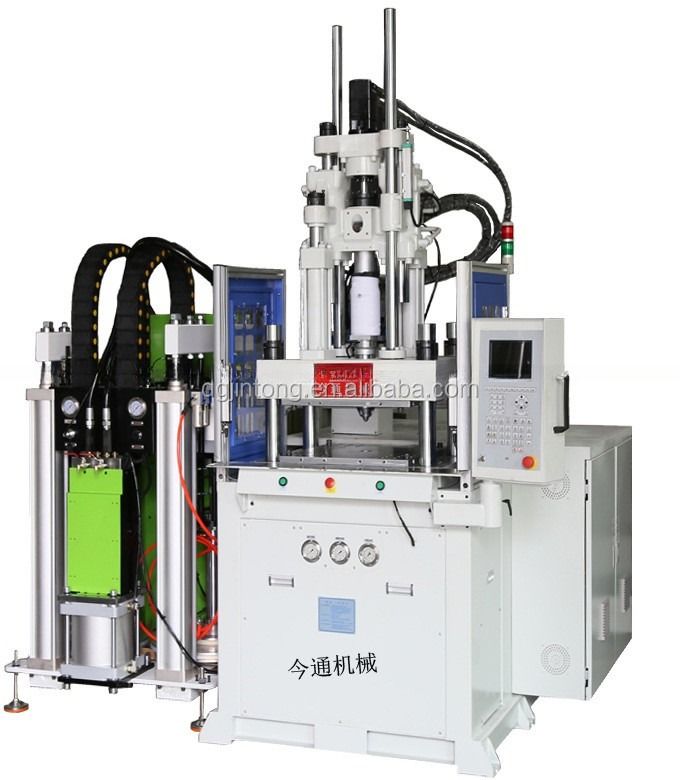

LSR liquid silicone nipple pacifier injection molding machine 85T JTT-850LSR
Clamping Force: 85T
Injection Weight: 165-272g
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
