ISO9001 LSR Injection Molding Machine 55T Liquid Silicone Rubber Injection Molding Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTT-550DM LSR |
Payment & Shipping Terms:
| Price: | $35,000.00 - $42,000.00/pieces |
|---|---|
| Packaging Details: | plastic film packing for liquid silicone rubber injection molding machine 55T |
| Supply Ability: | 60 Piece/Pieces per Month liquid silicone rubber injection molding machine 55T |
|
Detail Information |
|||
| Plastic Processed: | Liquid Silicone | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 100 |
| Mold Height(mm): | 110 - 350 Mm | Ejector Number: | 2 |
| Ejector Stroke(mm): | 45 Mm | Ejector Force(kN): | 13 KN |
| Theoretical Shot Volume(cm³): | 176 Cm³ | Injection Rate (g/s): | 90 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 160 G |
| Screw Speed (rpm): | 1 - 200 Rpm | Screw Diameter (mm): | 40 Mm |
| Screw L/D Ratio: | 25 | Distance Between Tie Bars: | 460mm |
| Weight (KG): | 2500 Kg | Type: | Other |
| Open Stroke(mm): | 500 Mm | Power (kW): | 12 KW |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, PLC, Pressure Vessel |
| After Warranty Service: | Video Technical Support | Marketing Type: | Ordinary Product |
| Port: | SHENZHEN | ||
| Highlight: | 55T Liquid Silicone Rubber Injection Molding Machine,ISO9001 LSR Injection Molding Machine 55T,LSR Injection Moulding Machine |
||
Product Description
55T Liquid Silicone Rubber Injection Molding Machine For Medical Goods And Efficiency

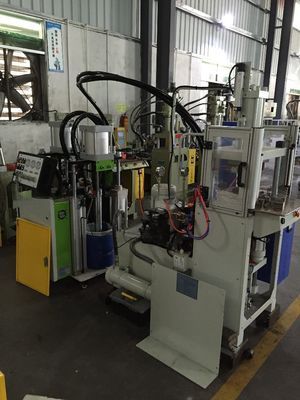

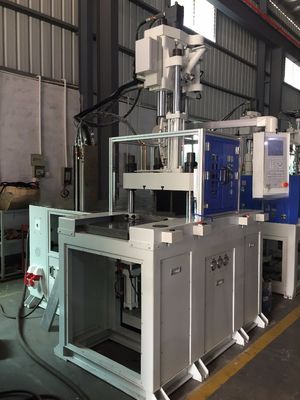

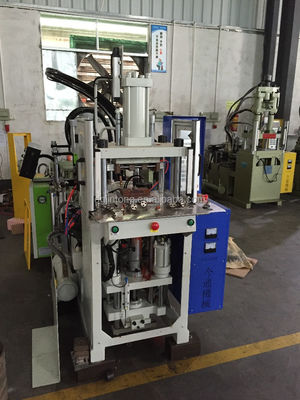

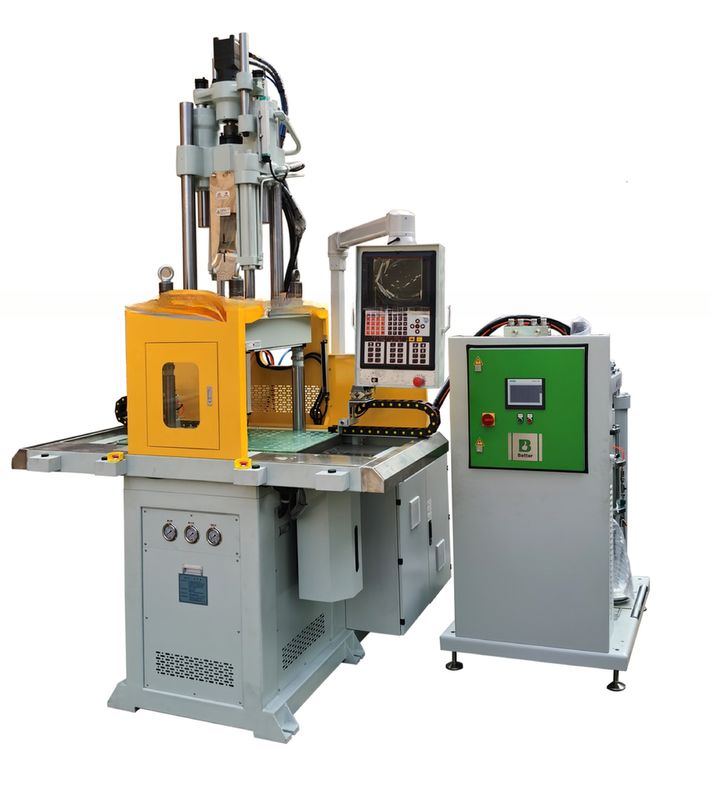

Liquid silicone rubber injection molding machine 55T JTT-550DM LSR
Clamping Force: 55T
Injection Weight: 90-160g
Fixed low die and movable up die to avoid insert part shift; oil hydraulic unit under low die to ejector finshed products; ejector speed and stroke adjusted by actual demand
Combined with conveyor system used on production line
Main Features
Match with german 2KM(200L) liquid silicone feeder
Multi stage precise mold heating temperature control
Special hydraulic water cooling closed nozzle for LSR
Special tube for LSR
Adiabatic cold water plate
Insulating glass fiber board
Selectable rotary table or double slide table(one up mold, two down mold), easy to put and pick up parts, and have enough time to clean mold to improve productivity
Special feeding injection design to make accurate feeding measurement
Selectable adjustable vacuum device to prevent air bubble on products
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
