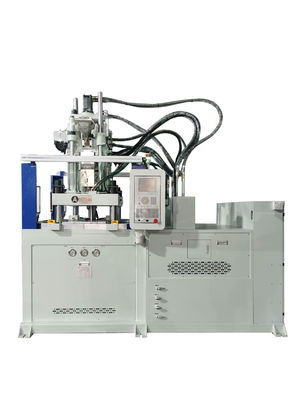

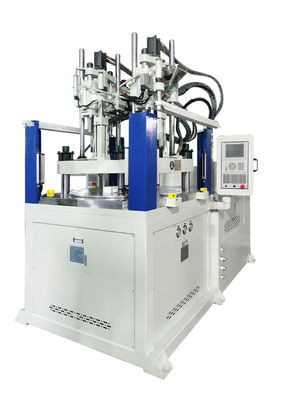

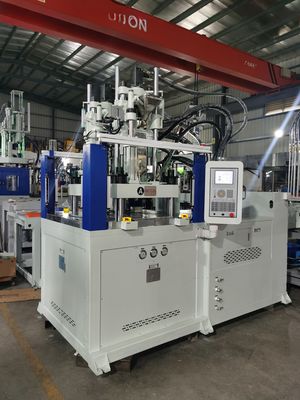

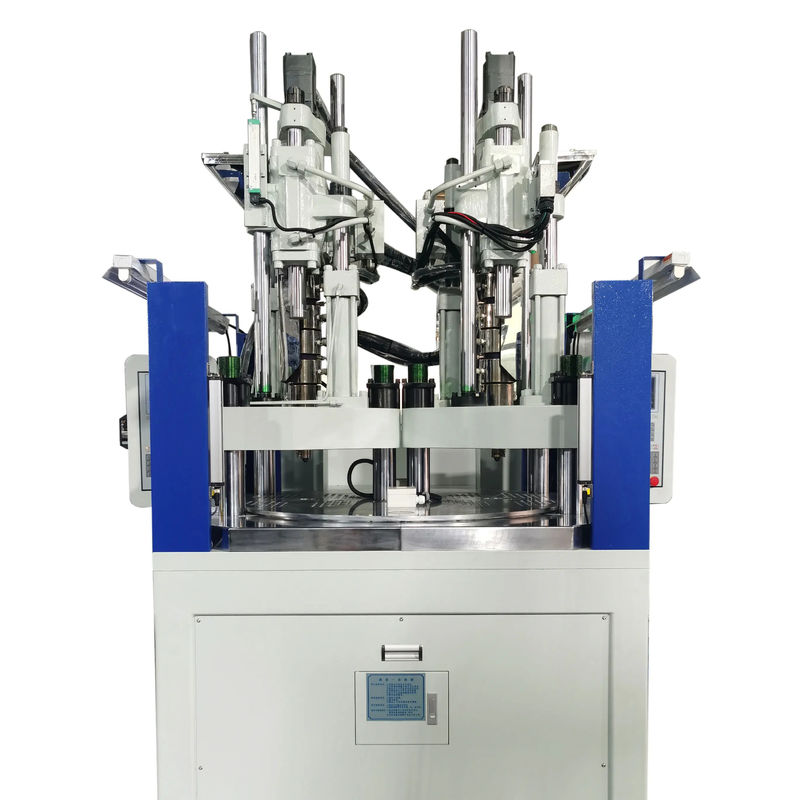

TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-1700-2V2R |
Payment & Shipping Terms:
| Price: | $61,000.00/pieces 1-2 pieces |
|---|
|
Detail Information |
|||
| Plastic Processed: | PA, TR | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 230 |
| Mold Height(mm): | 160 - 400 Mm | Ejector Number: | Other |
| Ejector Stroke(mm): | 75 Mm | Ejector Force(kN): | 27 KN |
| Theoretical Shot Volume(cm³): | 145 Cm³ | Injection Rate (g/s): | 120 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 130 G |
| Screw Speed (rpm): | 1 - 300 Rpm | Screw Diameter (mm): | 25 Mm |
| Screw L/D Ratio: | 24 | Distance Between Tie Bars: | 570mm |
| Weight (KG): | 9000 Kg | Type: | Other |
| Open Stroke(mm): | 400 Mm | Power (kW): | 45.2 KW |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Screw |
| Opening Stroke: | 270MM | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Screw Diameter: | 25MM | Oil Tank: | 800L |
| Product Name: | TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T | Rotary Table Diameter: | 1080mm |
| Max Daylight: | 550mm | Min Old Height: | 250mm |
| Ejector Force: | 2.7T | ||
| Highlight: | Two Color Injection Molding Machine Vertical,Two Color Injection Molding Machine 170T |
||
Product Description
TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed Rpm 1 300 Rpm
TR glasses spectacle frame two color injection molding machine 170T
Clamping Force: 170T
Max Injection Weight: 130g
1. Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
2. Different injection combination can be chosen to reach best productivity and less power loss according to different shot weight
3. One molding for dual-color/material embeded products, multi-sation rotary design, stable rotation, precise position, easy to put and pick out products
4. Injection system can be used individually
5. can use both for two color/material and one color/material machine
|
|
Model
|
|
JTT-1700-2V2R
|
|
injection system
|
Screw Diameter
|
mm
|
A25 B25
|
|
|
Injection Pressure
|
kg/cm2
|
3125 3125
|
|
|
Theoretical Shot Volume
|
cm3
|
68 68
|
|
|
Injection Rate
|
cm3/sec
|
75 75
|
|
|
Screw Stroke
|
mm
|
140
|
|
|
Screw Speed
|
rpm
|
0--300
|
|
|
Nozzle Contact Force
|
tons
|
4.6
|
|
|
Number of Temperature Control
|
|
A4 B4
|
|
clamping system
|
Clamping Force
|
tons
|
A85 B85
|
|
|
Opening Force
|
tons
|
4.6
|
|
|
Min Mold Height
|
mm
|
200
|
|
|
Opening Stroke
|
mm
|
300
|
|
|
Max Open Daylight
|
mm
|
500
|
|
|
Mold Dimension
|
mm
|
360*360
|
|
|
Rotary Table Diameter
|
mm
|
1080
|
|
|
Ejector Force
|
tons
|
2
|
|
|
Ejector Stroke
|
mm
|
75
|
|
oil pressure system
|
Max Hydraulic Pressure
|
kg/cm2
|
140
|
|
|
Pump Output
|
L/min
|
100
|
|
|
Oil Reservior Capacity
|
L
|
200
|
|
|
Cooling Water Consumption
|
/hr
|
800-1000
|
|
|
Pump Moter Power
|
KW
|
A14 B14
|
|
|
Rotary Table Moter Power
|
KW
|
1.8
|
|
|
Ejector Power
|
KW
|
2.2
|
|
|
Barrel Heating Power
|
KW
|
A6.6 B6.6
|
|
|
Total Power
|
KW
|
45.2
|
|
OTHER
|
Machine Dimension
|
m
|
2.85*2.35*2.8
|
|
|
Machine Weight
|
tons
|
9
|
Main Features
Don’t ejector mold after finishing first injection system, and direct transfer to second injection system, and molding after second injection, without shrink or excessive glue
Optional automatic device for taking in or out to make unmanned automation equipment
Use special central shunt valve design, single direction rotary to avoid problems with water cooling lines.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
