120T Double Slide Table Vertical Injection Molding Machine For High Volume Production
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-1200DM |
Payment & Shipping Terms:
| Price: | $29,500.00/pieces 1-4 pieces |
|---|---|
| Packaging Details: | plywood for double slide table vertical plastic injection molding machine 120T |
| Supply Ability: | 600 Piece/Pieces per Month double slide table vertical plastic injection molding machine 12 |
|
Detail Information |
|||
| Plastic Processed: | PP, PC, ABS, PA | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 200 |
| Mold Height(mm): | 210 - 430 Mm | Ejector Number: | 2 |
| Ejector Stroke(mm): | 75 Mm | Ejector Force(kN): | 33 KN |
| Theoretical Shot Volume(cm³): | 353 Cm³ | Injection Rate (g/s): | 177 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 321 G |
| Screw Speed (rpm): | 1 - 180 Rpm | Screw Diameter (mm): | 50 Mm |
| Screw L/D Ratio: | 25 | Distance Between Tie Bars: | 500mm |
| Weight (KG): | 4800 Kg | Type: | Other |
| Open Stroke(mm): | 540 Mm | Power (kW): | 22.5 KW |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Engine |
| Opening Stroke: | 250mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Screw Diameter: | 35mm 40mm 45mm 50mm | Screw Stroke: | 180mm |
| Product Name: | Double Slide Table Vertical Injection Molding Machine JTT-120D | Opening Force: | 15T |
| Platen Size: | 840*500mm | Max Daylight: | 500/450mm |
| Min Old Height: | 250/200mm | Ejector Force: | 3.3T |
| Marketing Type: | Ordinary Product | Port: | SHENZHEN |
| Highlight: | Double Slide Table Vertical Injection Molding Machine,Double Slide Vertical Injection Molding Machine |
||
Product Description
120T Double Slide Table Vertical Injection Molding Machine For High Volume Production

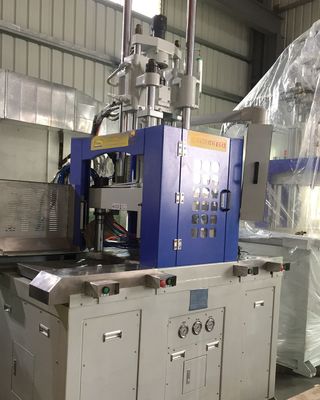

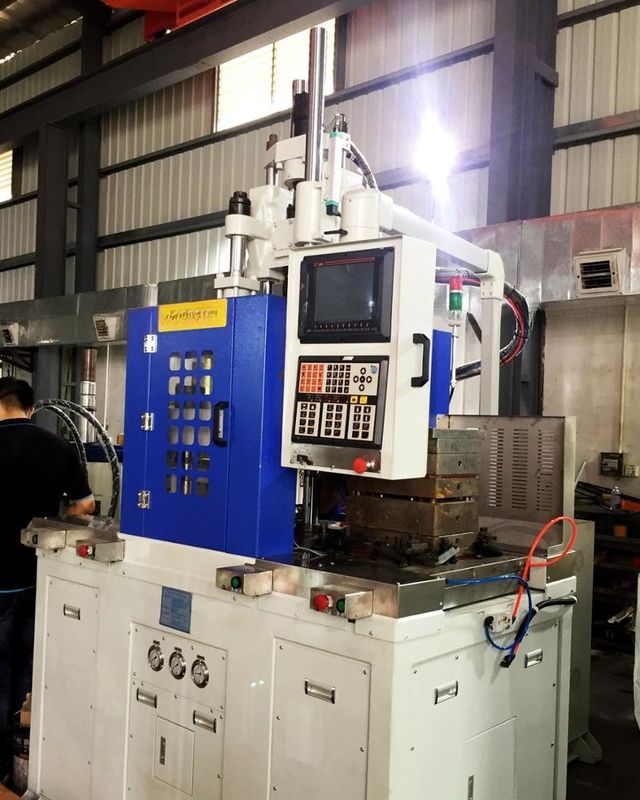

Double slide table vertical injection molding machine JTT-1200DM
Clamping Force: 120T
Max Injection Weight: 321g
Vertical clamping, vertical injection
DM-double slide table(one up die and two low die)
double slide table provide high efficency
Optional saving energy motor
Fixed low die and movable up die to avoid insert part shift; oil hydraulic unit under low die to ejector finshed products; ejector speed and stroke adjusted by actual demand
Combined with conveyor system used on production line
Main Features
With lower mold can slid out towards operation direction, inserts, placed parts and finished products are all finished outside the clamping unit. It works safely and suits for those inserts that are hard to place.

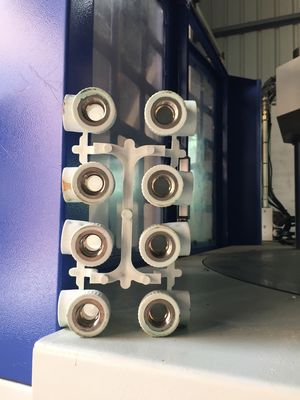

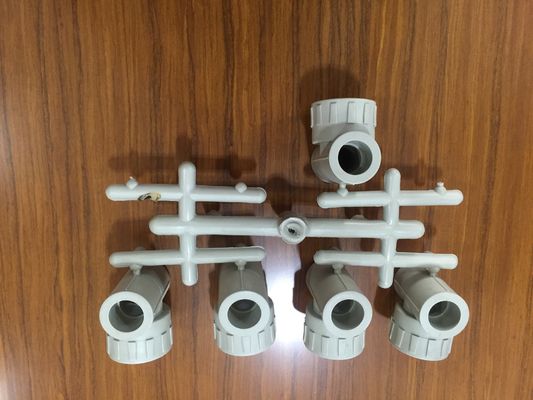

Suitable for all kinds of insert molding.
Nitrided steel screw and barrel, directly driven by high torque motor, with multi stages injection pressure, better plasticization.
Vertical compression clamping system, closing mold with high speed lower pressure as well as multi pressure control and prolong mold using life.
Electric protection device can not happen wrong action and maintain the operators safety.
Auto life injection base, it is easy for replacement of material and mold.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
