High Safety Level 200 Ton Injection Molding Machine Vertical For Sweep Brush
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-2000 |
Payment & Shipping Terms:
| Price: | $48,000.00/pieces 1-2 pieces |
|---|---|
| Packaging Details: | PLYWOOD CASE |
| Supply Ability: | 600 Piece/Pieces per Month JINTONG vertical injection molding machine JTT-1200 |
|
Detail Information |
|||
| Plastic Processed: | PP, PC, ABS, PVC, PA, PE, LDPE, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 500 |
| Mold Height(mm): | 310 - 550 Mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 145 Mm | Ejector Force(kN): | 48 KN |
| Theoretical Shot Volume(cm³): | 570 Cm³ | Injection Rate (g/s): | 178 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 513 G |
| Screw Speed (rpm): | 1 - 240 Rpm | Screw Diameter (mm): | 55 Mm |
| Screw L/D Ratio: | 26 | Distance Between Tie Bars: | Other |
| Weight (KG): | 5000kg | Type: | Other |
| Open Stroke(mm): | 250 Mm | Power (kW): | 44.3 KW |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, PLC, Pressure Vessel |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | 200T Vertical Injection Molding Machine JTT-2000 |
| Opening Force: | 200T | Platen Size: | 870*610mm |
| Max Daylight: | 650MM | Min Old Height: | 300MM |
| After Warranty Service: | Video Technical Support | Marketing Type: | Ordinary Product |
| Port: | SHENZHEN | ||
| Highlight: | JINTONG 200 Ton Injection Molding Machine,200 Ton Injection Molding Machine Vertical |
||
Product Description

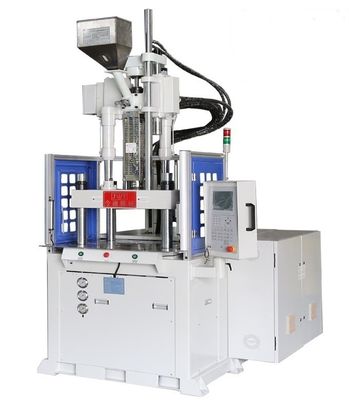

5000 Kg High Safety Level JINTONG 200T Vertical Injection Molding Machine For Sweep Brush

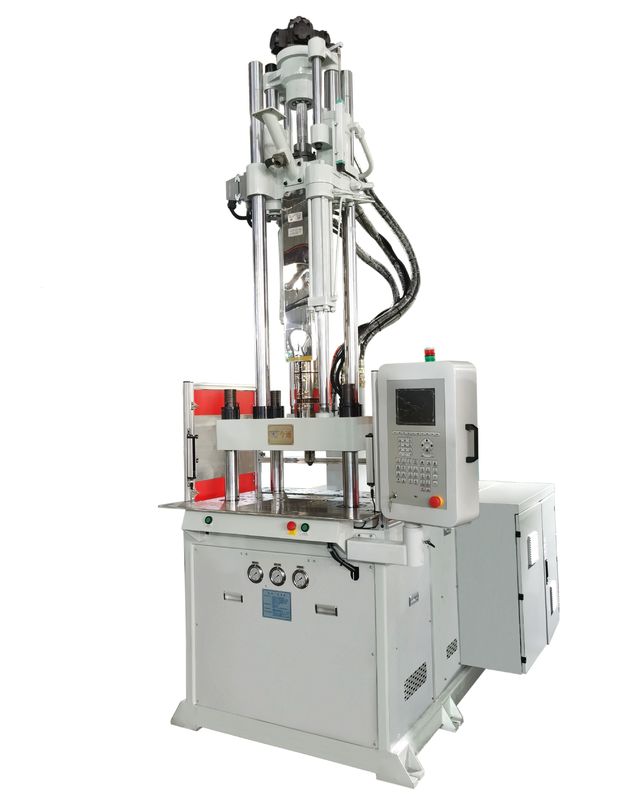

vertical injection molding machine JTT-2000
Clamping Force: 200T
Injection Weight: 200--660G
Vertical clamping, vertical injection
Optional saving energy motor
Combined with conveyor system used on production line
Main Features
With lower mold can slid out towards operation direction, inserts, placed parts and finished products are all finished outside the clamping unit. It works safely and suits for those inserts that are hard to place.
Suitable for all kinds of insert molding.
Nitrided steel screw and barrel, directly driven by high torque motor, with multi stages injection pressure, better plasticization.
Vertical compression clamping system, closing mold with high speed lower pressure as well as multi pressure control and prolong mold using life.
Electric protection device can not happen wrong action and maintain the operators safety.
Auto life injection base, it is easy for replacement of material and mold.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
