Center Turret Two Color Plastic Injection Molding Machine Handle JTT-1100
Product Details:
| Place of Origin: | DONGGUAN |
| Brand Name: | JINTONG |
| Certification: | ISO9001 |
| Model Number: | JTT-1100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD37000-40000/PC |
| Packaging Details: | plywood case |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100PCS/MONTH |
|
Detail Information |
|||
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support, Video Technical Support |
|---|---|---|---|
| Power(Kw): | 26 | Automatic: | Yes |
| Certification: | CE ISO | Plastic Type: | Termoplastic |
| Clamping Force: | 110T | Warranty: | 1 Year Free Spare Parts, Life-spen Service |
| Keyword: | Two Color Handle | ||
| Highlight: | ISO9001 Two Color Plastic Injection Molding Machine,Two Color Plastic Injection Molding Machine Handle |
||
Product Description

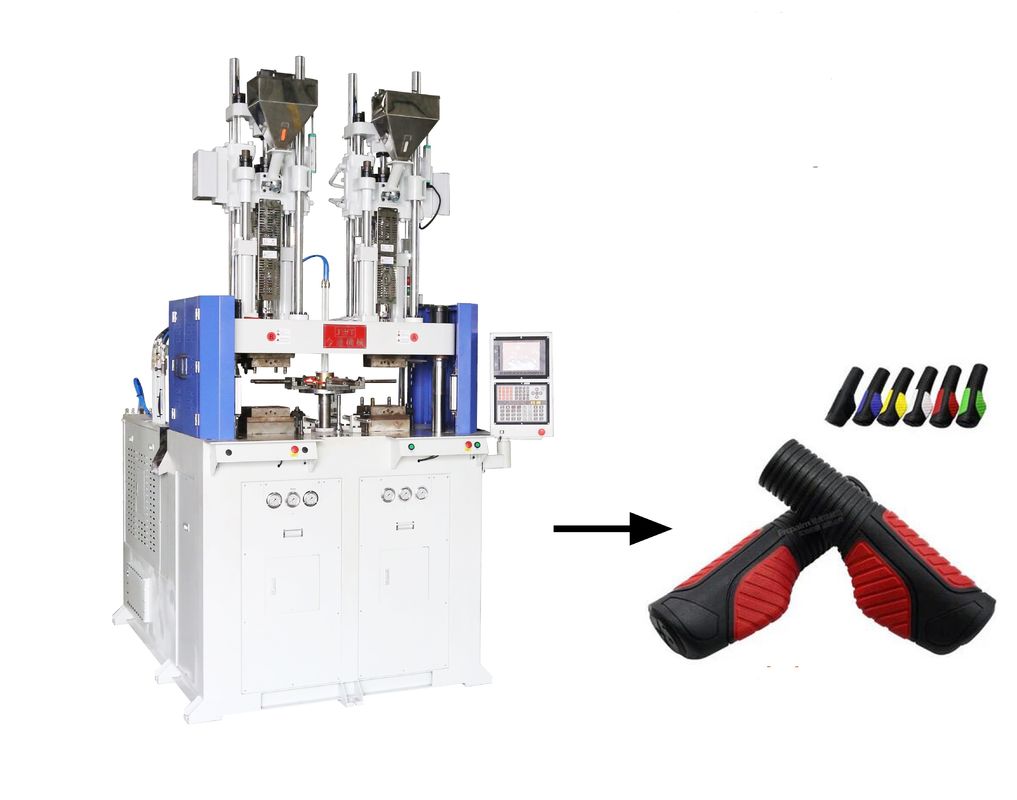

Center Turret Two Color Plastic Injection Molding Machine Handle JTT-1100
Center turret two color/material injection molding machine JTT-1100
Clamping force: 110T
Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
Center turret to transfer injected parts from one mold to another mold
Different injection combination can be chosen to reach best productivity and less power loss accoding to different shot weight
One molding for dual-color/material embedded products, multi-station rotary design, stable rotation, precise position, easy to put and pick out products
Application for bicycle handle, tools handle
| Model | JTT-1100 | |||
| Injection System | A | B | ||
| Clamping Force | tons | 55 | 55 | |
| injection system | Screw Diameter | mm | 30 | 30 |
| Injection Pressure | kg/cm2 | 2713 | 2713 | |
| Theoretical Shot Volume | cm3 | 99 | 99 | |
| Max Shot Weight | g | 78 | 78 | |
| Injection Rate | cm3/sec | 275 | 275 | |
| Screw Stroke | mm | 140 | 140 | |
| clamping system | Clamping Force | tons | 110 | |
| Opening Force | tons | 27 | ||
| Distance Between Tie Bar | mm | 320*400 | ||
| Min Mold Height | mm | 210 | ||
| Opening Stroke | mm | 250 | ||
| Max Open Daylight | mm | 460 | ||
| Ejector Force | tons | 6 | ||
| Ejector Stroke | mm | 108 | ||
| OTHER | Max Hydraulic Pressure | kg/cm2 | 140 | |
| Pump Output | CC | main system 128 auxiliary system 64 | ||
| Motor Speed | r/min | 2000 | ||
| Machine Weight | tons | 7 | ||
| Machine Dimension | mm | 2560*2050*3495.5 | ||
