45T Automatic Vertical Thermoplastic injection molding machine With 400mm Open Stroke
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| Model Number: | JTT-450D |
Payment & Shipping Terms:
| Price: | $12,000.00 - $14,000.00/pieces |
|---|---|
| Packaging Details: | plastic film packing for New Automatic Vertical Thermoplastic injection molding machine |
| Supply Ability: | 600 Piece/Pieces per Month New Automatic Vertical Thermoplastic injection molding machine |
|
Detail Information |
|||
| Plastic Processed: | PP, PC, ABS, PVC, PA, PE | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 45 Mm |
| Ejector Force(kN): | 13 KN | Theoretical Shot Volume(cm³): | 115 Cm³ |
| Injection Rate (g/s): | 71 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 105 G | Screw Diameter (mm): | 35 Mm |
| Distance Between Tie Bars: | 410mm | Weight (KG): | 1500 |
| Type: | Other | Open Stroke(mm): | 400 Mm |
| Power (kW): | 9 KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, PLC, Pressure Vessel, Screw | Opening Stroke: | 180mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support | Screw Diameter: | 20mm 30mm 35mm |
| Screw Stroke: | 120mm | Product Name: | New Automatic Vertical Thermoplastic Injection Molding MachineJTT-450D |
| Opening Force: | 6.5T | Platen Size: | 580*430mm |
| Max Daylight: | 410/350mm | Min Old Height: | 210/150mm |
| Ejector Force: | 1.3T | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | United States, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Argentina, Colombia, Bangladesh, South Africa, Ukraine, Uzbekistan | Marketing Type: | Ordinary Product |
| Port: | SHENZHEN | ||
| Highlight: | Automatic Thermoplastic Injection Molding Machine,Vertical Thermoplastic Injection Molding Machine,Thermoplastic Injection Moulding Machine Vertical |
||
Product Description

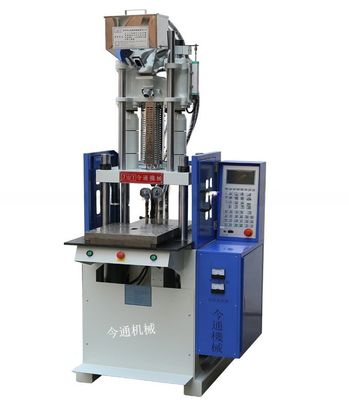

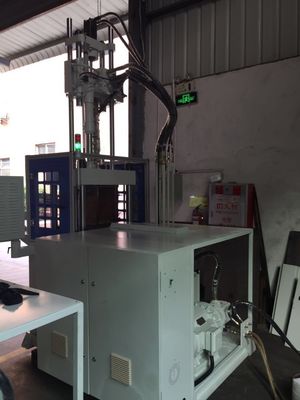

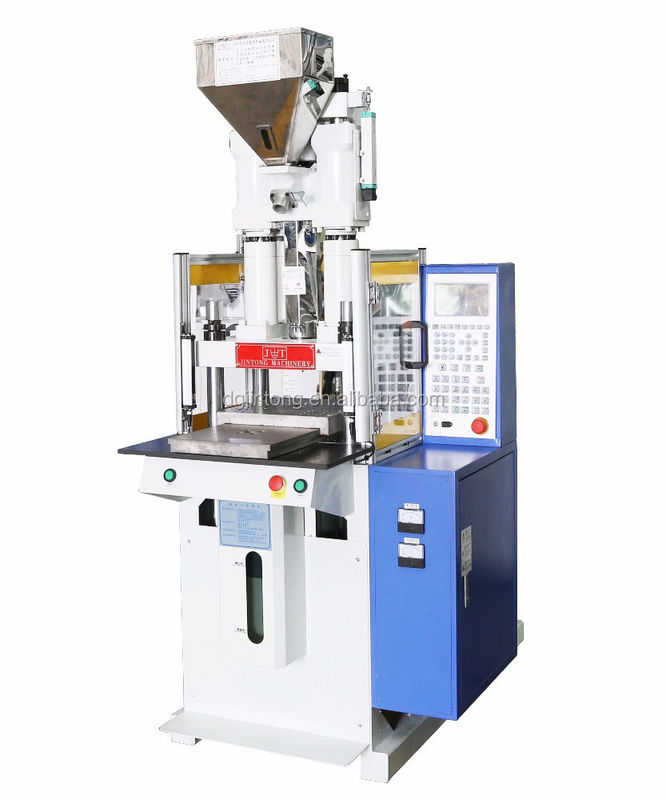

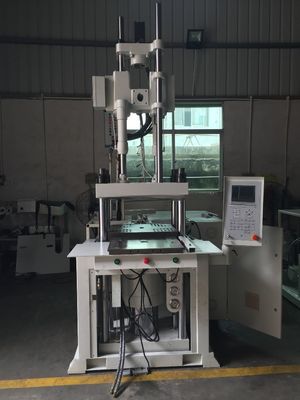

Hydraulic Vertical 45T Thermoplastic Injection Molding Machine With 400mm Open Stroke
New Automatic Vertical Thermoplastic injection molding machine JTT-450D
Clamping Force: 45T
Max Injection Weight: 54-105g
Vertical clamping, vertical injection
D—single slide table(one up die and one low die)
Single slide table offer operation convenience
Optional saving energy motor
Fixed low die and movable up die to avoid insert part shift; oil hydraulic unit under low die to ejector finshed products; ejector speed and stroke adjusted by actual demand
Combined with conveyor system used on production line
Main Features
With lower mold can slid out towards operation direction, inserts, placed parts and finished products are all finished outside the clamping unit. It works safely and suits for those inserts that are hard to place.
Suitable for all kinds of insert molding.
Nitrided steel screw and barrel, directly driven by high torque motor, with multi stages injection pressure, better plasticization.
Vertical compression clamping system, closing mold with high speed lower pressure as well as multi pressure control and prolong mold using life.
Electric protection device can not happen wrong action and maintain the operators safety.
Auto life injection base, it is easy for replacement of material and mold.
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system

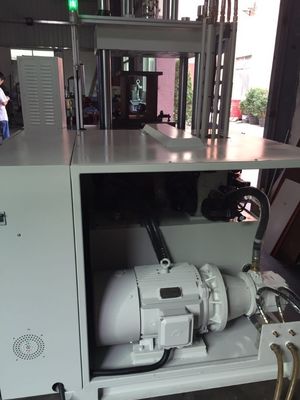

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
