250 Ton Plastic Injection Moulding Machine Vertical JTT-2500R With Max Daylight 650/710mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINTONG |
| Model Number: | JTT-2500R |
Payment & Shipping Terms:
| Price: | $67,650.00/pieces 1-2 pieces |
|---|---|
| Packaging Details: | plastic film packing for rotary vertical injection molding machine 250T |
| Supply Ability: | 400 Piece/Pieces per Month rotary vertical injection molding machine |
|
Detail Information |
|||
| Plastic Processed: | PC, PVC, PA | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 100 Mm |
| Ejector Force(kN): | 46 KN | Theoretical Shot Volume(cm³): | 929 Cm³ |
| Injection Rate (g/s): | 285 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 513 G | Screw Diameter (mm): | 65 Mm |
| Distance Between Tie Bars: | 660mm | Weight (KG): | 13000 Kg |
| Type: | Screw Injection | Open Stroke(mm): | 500 Mm |
| Power (kW): | 22 KW | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump, PLC, Pressure Vessel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Screw Diameter: | 55 60 65 | Screw Stroke: | 280mm |
| Product Name: | Rotary Table Vertical Injection Molding Machine JTT-2500R | Opening Force: | 26.4T |
| Rotary Table Diameter: | 1600mm | Max Daylight: | 650/710mm |
| Min Old Height: | 300/360mm | Ejector Force: | 4.6T |
| Machine Dimension(L*W*H): | 3.6*2.35*4.1m | Port: | SHENZHEN |
| Highlight: | CE 250 Ton Plastic Injection Moulding Machine,250 Ton Plastic Injection Moulding Machine Vertical |
||
Product Description
250T Vertical Plastic Injection Molding Machine JTT-2500R With Max Daylight 650/710mm

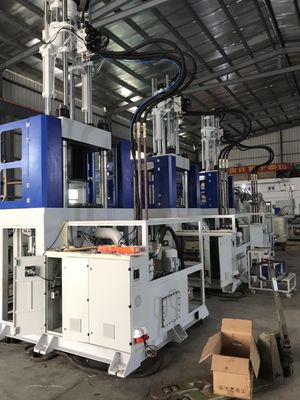

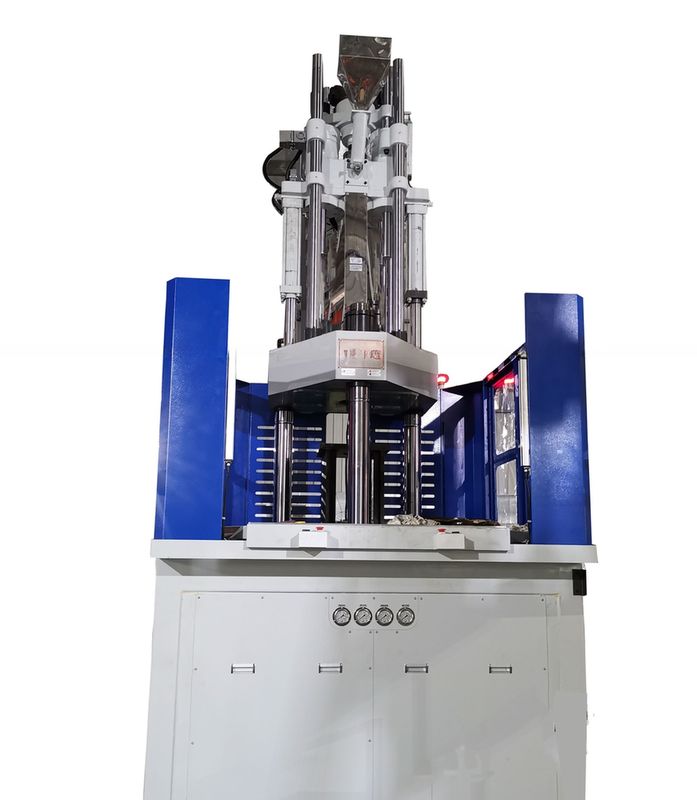

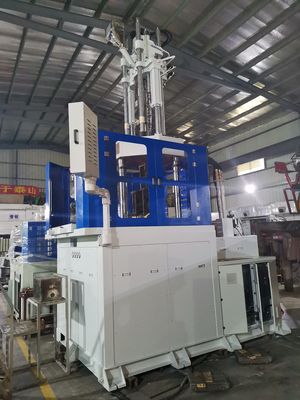

Vertical rotary injection molding machine JTT-2500R
Clamping Force: 250T
Max injection Weight: 836g
Vertical clamping, vertical injection Easy to set torque , speed, deceleration distance and stand number segmentation SERVO motor control rotary table, forward-rotating, reverse-rotating, forward and reverse alternative rotating. 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity machine station number decide lower mold number, eg: 3 staitons have one upper mold 3pcs lower mold Optional energy-saving motor
|
|
Model
|
|
JTT-2500R
|
|
injection system
|
Screw Diameter
|
mm
|
55 60 65
|
|
|
Injection Pressure
|
kg/cm2
|
2087 1754 1494
|
|
|
Theoretical Shot Volume
|
cm3
|
665 792 929
|
|
|
Max Shot Weight
|
g
|
599 713 836
|
|
|
Injection Rate
|
cm3/sec
|
202 243 285
|
|
|
Screw Stroke
|
mm
|
280
|
|
|
Screw Speed
|
rpm
|
152
|
|
|
Heating Capacity
|
kw
|
20
|
|
clamping system
|
Clamping Force
|
tons
|
250
|
|
|
Opening Force
|
tons
|
26.4
|
|
|
Min Mold Height
|
mm
|
300
|
|
|
Opening Stroke
|
mm
|
450
|
|
|
Max Open Daylight
|
mm
|
750
|
|
|
Mold Dimension
|
mm
|
850*450
|
|
|
Rotary Table Diameter
|
mm
|
1800
|
|
|
Ejector Force
|
tons
|
4.6
|
|
|
Ejector Stroke
|
mm
|
100
|
|
other
|
Motor Power
|
kw
|
33.8
|
|
|
Machine Dimension
|
m
|
3.8*2.55*4.12
|
|
|
Machine Weight
|
tons
|
13.6
|
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
